 HMI cable CPU1;2;31x PG-2m 2m cable for connection between the HMI and the VIPA S7 CPU's eg: 11x, 21x, 31x, 51x or the Siemens S7 CPU's. Connects the panel to the MPI port on the CPU but also comes with a PG interface for MPI network. ....... please click for full text ..... |
 Protect Film TP 605 TP 605 protection film Protection Film for the TP605 5.7" touch screen 10 pack ....... please click for full text ..... |
|
Protect Film TP 606 TP 606 protection film Protection Film for the TP606 6.5" touch screen 10 pack ....... please click for full text ..... |
|
Protect Film TP 608 TP 608 protection film Protection Film for the TP608 8.4" touch screen 10 pack ....... please click for full text ..... |
|
Protect Film TP 610 TP 610 protection film Protection Film for the TP610 10.4" touch screen 10 pack ....... please click for full text ..... |
|
Protect Film TP 612 TP 612 protection film Protection Film for the TP612 12.1" touch screen 10 pack ....... please click for full text ..... |
 Touch Panel EDITOR Free Movicon Editor FREE demo package Movicon Editor will run online and program without licence but will pop up nags screens regularly, and allow 2 hours of runtime testing on a PC. When used to program the VIPA touch panels it allows full configuration and full unlimited runtime will be available on the VIPA touch panel. ....... please click for full text ..... |
 TP FLASH SD 2GB SD Memory Card formated for the VIPA TP panels. 2GB SD Industrial ....... please click for full text ..... |
 TP 604LC ECO Movicon Touch Panel ECO TP 604LC, 4.3“ TFT color, RS485, RS232, RS422, USB-A, Ethernet RJ45 10/100Mb, (MPI/Profibus-DP optional), incl. Windows CE 6.0 Core and Runtime Movicon11 Basic. 24VDC, 11...36V range 140 x 116 x 57mm Cutout - 123 x 99mm identical to Siemens KTP400 ARM 11 533MHz Processor 128 MByte Flash 128MByte RAM MMC/SDCardSlot Horizontal ....... please click for full text ..... |
|
TP 605CQ Movicon Professional Touch Panel TP 605CQ, 5,7“ QVGA, TFT color, MPI/Profibus-DP/RS485, RS232, RS485, USB-A, USB-B, Ethernet RJ45, incl. Windows CE 5.0 and Runtime Movicon11 Real Flexible. XSCALE 800MHz Processor 128MB work memory, 2GB user memory available on board CFCard II- and MMC/SDCardSlot Horizontal or vertical display setting RS232, RS485, RS422, MPI, Profib ....... please click for full text ..... |
|
TP 605MQ Movicon Professional Touch Panel TP 605MQ, 5,7“ QVGA, LCD monochrome, MPI/Profibus-DP/RS485, RS232, USB-A, USB-B, Ethernet RJ45, incl. Windows CE 5.0 and Runtime Movicon11 Real Flexible XSCALE 520MHz Processor 64 MByte user memory available on board CFCard II- and MMC/SDCardSlot Horizontal or vertical display setting RS232, RS485, RS422, MPI, Profibus-DP-Slave, ....... please click for full text ..... |
|
TP 606C Movicon Professional Touch Panel TP 606C, 6,5“ VGA, TFT color, MPI/Profibus-DP/RS485, RS232, RS485, USB-A, USB-B, Ethernet RJ45, incl. Windows CE 6.0 and Runtime Movicon11 Real Flexible. XSCALE 1.1GHz Processor 256 MByte work memory, 512MBGB user memory available on board CFCard II- and MMC/SDCardSlot Horizontal or vertical display setting RS232, RS485, RS422, MPI ....... please click for full text ..... |
|
TP 607LC ECO+ Movicon Touch Panel TP 607LC ECO, 7“ TFT color, RS485, RS232, RS422, USB-A, Ethernet RJ45 10/100Mb, (MPI/Profibus-DP optional), incl. Windows CE 6.0 Core and Runtime Movicon11 Basic. 800x480 pixel Wide Screen 65536 colours, LED back lighting 24VDC, 11...36V range 212 x 156 x 57mm Cutout - 197 x 141mm identical to VIPA 605, 606 and Siemens TP170, MP177 Cortex A8 ....... please click for full text ..... |
|
TP 608C Movicon HW02 Professional Touch Panel TP 608C, 8.4“ VGA, TFT color, MPI/Profibus-DP/RS485, RS232, RS422/485, 2x USB-A, USB-B, 2x Ethernet RJ45, incl. Windows CE 5.0 and Runtime MoviconX Real Flexible. XSCALE 520MHz Processor 6 MByte user memory available on board CFCard II- and MMC/SDCardSlot Horizontal or vertical display setting RS232, RS485, RS422, MPI, Profibus-DP-Sl ....... please click for full text ..... |
|
TP 60xLC ECO MPI DP VIPA MPI Profibus DP interface card for the TP4.3 and 7inch ECO panels. Plug in submodule. ....... please click for full text ..... |
|
TP 610C Movicon Professional Touch Panel TP 610C, 10.4“ SVGA, TFT color, MPI/Profibus-DP/RS485, RS232, RS422/485, 2x USB-A, USB-B, 2x Ethernet RJ45, incl. Windows Embedded CE 6.0 and Runtime Movicon11 Real Flexible. XSCALE 800MHz Processor 128 MByte work memory available on board 2048MByte user memory onboard CFCard II- and MMC/SDCardSlot Horizontal or vertical display set ....... please click for full text ..... |
|

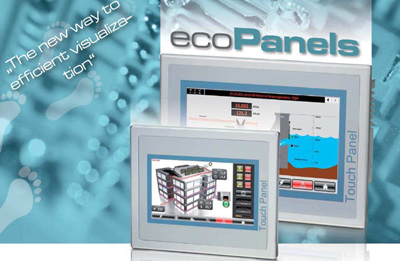

TP 610eco Movicon Touch Panel TP 610 ECO, 10“, TFT colour 64K colours, 10 inch, TFT, 1024x768 pixel Cortex-A8 processor, 1000MHz 256 MB work memory, 128 MB user memory RS232, RS232/RS422/485, USB-A, 2x Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Core, Movicon Basic Runtime Cortex 1000MHz Processor 256 MByte work memory, 128MByte user memory avai ....... please click for full text ..... |
|
TP 610eco+ Movicon Touch Panel TP 610 ECO, 10“, TFT colour 64K colours, 10 inch, TFT, 1024x768 pixel Cortex-A8 processor, 1000MHz 256 MB work memory, 128 MB user memory RS232, RS232/RS422/485, USB-A, 2x Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Core, Movicon Basic Runtime Cortex 1000MHz Processor 256 MByte work memory, 128MByte user memory avai ....... please click for full text ..... |
|
TP 612C Movicon Professional Touch Panel TP 612C, 12“ SVGA, TFT color, MPI/Profibus-DP/RS485, RS232, RS422/485, 2x USB-A, USB-B, Ethernet RJ45, incl. Windows Embedded CE 6.0 and Runtime Movicon11 Real Flexible. XSCALE 800MHz Processor 128 MByte work memory available on board 2048MByte user memory onboard CFCard II- and MMC/SDCardSlot Horizontal or vertical display se ....... please click for full text ..... |
|
TP 615eco Movicon Touch Panel TP 615 ECO, 15“, TFT colour 64K colours, 15 inch, TFT, 1024x768 pixel Cortex-A8 processor, 1000MHz 256 MB work memory, 128 MB user memory RS232, RS232/RS422/485, USB-A, 2x Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Core, Movicon Basic Runtime Cortex 1000MHz Processor 256 MByte work memory, 128MByte user memory avai ....... please click for full text ..... |
|
TP 615eco+ Movicon Touch Panel TP 615 ECO PLUS, 15“, TFT colour 64K colours, 15 inch, TFT, 1024x768 pixel Cortex-A8 processor, 1000MHz 256 MB work memory, 128 MB user memory RS232, RS232/RS422/485, USB-A, 2x Ethernet RJ45 (MPI/DP interface optional available) Windows Embedded CE 6.0 Core, Movicon Basic Runtime Cortex 1000MHz Processor 256 MByte work memory, 128MByte user memory ....... please click for full text ..... |
|
TP Panel PC PPC015 ES Panel PC PPC015 ES 15.6inch Touch Panel PC, Running Windows 7 embedded standard and Movicon Standard SCADA edition (32byte licence upgradable) Processor: Intel Atom D2550 dualcore @1,86 GHz Work memory: 2 GB Operating system and user memory: 16 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS ....... please click for full text ..... |
|
TP Panel PC PPC015 ES Panel PC PPC015 ES 15.6inch Touch Panel PC, Running Windows 7 embedded standard (NO MOVICON RUNTIME) Processor: Intel Atom D2550 dualcore @1,86 GHz Work memory: 2 GB Operating system and user memory: 16 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS422/RS485), Audio out Displ ....... please click for full text ..... |
|
TP Panel PC PPC021 ES Panel PC PPC021 ES 21inch Touch Panel PC, Running Windows 7 embedded standard and Movicon Standard SCADA edition (32byte licence upgradable) Processor: Intel Atom D2550 dualcore @1,86 GHz Work memory: 2 GB Operating system and user memory: 16 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS42 ....... please click for full text ..... |
|
TP Panel PC upg 128B Panel PC upgrade Movicon bytes from 32Bytes to 128Bytes licence ....... please click for full text ..... |
|
TP Panel PC upg 128B +1web Panel PC upgrade Movicon add 1 web client to an existing 128Byte licence Note: You must have existing 128Byte licence on a panel PC, this upgrade adds just the 1 x web client ability. ....... please click for full text ..... |
|
TP Panel PC upg 128B +2web Panel PC upgrade Movicon add 2 web clients to an existing 128Byte licence Note: You must have existing 128Byte licence on a panel PC, this upgrade adds just the 2 x web clients ability. ....... please click for full text ..... |
|
TP Panel PC upg 2048B Panel PC upgrade Movicon bytes from 32Bytes to 2048Bytes licence ....... please click for full text ..... |
|
TP Panel PC upg 2048B+1web Panel PC upgrade Movicon add 1 web client to an existing 2048Byte licence Note: You must have existing 2048Byte licence on a panel PC, this upgrade adds just the 1 x web client ability. ....... please click for full text ..... |
|
TP Panel PC upg 2048B+2web Panel PC upgrade Movicon add 2 web clients to an existing 2048Byte licence Note: You must have existing 2048Byte licence on a panel PC, this upgrade adds just the 2 x web clients ability. ....... please click for full text ..... |
|
TP Panel PC upg 512B Panel PC upgrade Movicon bytes from 32Bytes to 512Bytes licence ....... please click for full text ..... |
|
TP Panel PC upg 512B +1web Panel PC upgrade Movicon add 1 web client to an existing 512Byte licence Note: You must have existing 512Byte licence on a panel PC, this upgrade adds just the 1 x web client ability. ....... please click for full text ..... |
|
TP Panel PC upg 512B +2web Panel PC upgrade Movicon add 2 web clients to an existing 512Byte licence Note: You must have existing 512Byte licence on a panel PC, this upgrade adds just the 2 x web clients ability. ....... please click for full text ..... |
 VIPA OP Manager OP-Manager Parameterization tool for OP 03 operator text panel from VIPA and Siemens. VIPA OP03 is also programmable by Protool from Siemens. ....... please click for full text ..... |

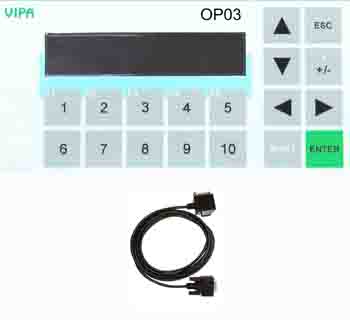

 VIPA OP03 OP03 Text Operator Panel, LCD, 2 x 20 charaters, complete with PLC to HMI cable 2M with PG interface so Programming of PLC or HMI can be done without removing the cable from the PLC. Comes with a MPI connection for S7-300, S7-400 Programming port from Siemens, and VIPA 100V, 200V 300V,400V, 500V CPU's MPI port Display with 2x20 characters 256kByte user memory ....... please click for full text ..... |

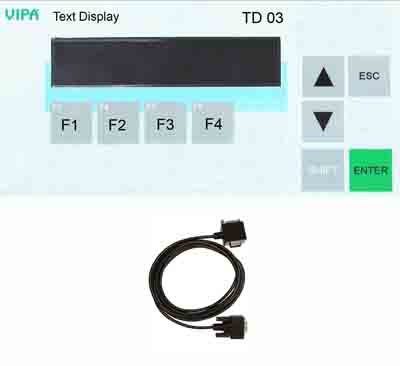

 VIPA TD03 TD03 Text Display Panel, LCD, 2 x 20 charaters, complete with PLC to HMI cable 2M with PG interface so Programming of PLC can be done without removing the cable from the PLC Includes TD Wizard for programming TD Wizard completely programs the PLC CPU for both Siemens and VIPA as below All configuration resides in the PLC CPU, S7-300, S7-400 from Siemens or any S7 CPU from VIPA, 10 ....... please click for full text ..... |
 xHMI 160 Text panel HMI 160, Text Display, 4x 20 Characters, LCD, 256kB Project Memory, 5+5 Function Keys, 18 aux keys ....... please click for full text ..... |

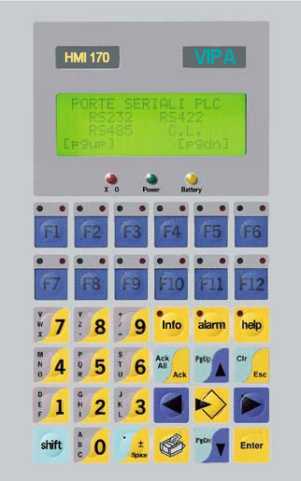

 xHMI 170 text panel HMI 170, Text Display, 4x 20 Characters, LCD, 320kByte Project Memory, 32k recipes, 12 Function Keys, 10tier Keyboard, MSP port (RS232, 422, 485, TTY), ASP port (RS232). ESANet Server built in, ESANet server requires HMI 5ESABUS module option for additional RS485 port MPI connection for connection to programming port of S7 PLC's from Siemens and the VIPA 100V, 200V, 300V systems ....... please click for full text ..... |
 xHMI 320 Graphic panel HMI 320, Graphic Display panel, 1/4 VGA, LCD, Color 1MB Project Memory, 128kByte Recipe Memory, Real-Time-Clock, 28 Function Keys, 10tier Keyboard, 2 serial Interfaces MPI connection for connection to programming port of S7 PLC's from Siemens and the VIPA 100V, 200V, 300V systems ....... please click for full text ..... |
 xHMI cable MSP to MPI Converter for the MSP port on the HMI panels to allow direct connection of the MPI network. Either use the MPI cable VIPA 670-0KB00 with this converter, or use 2 x Profibus plugs and a length of Profibus cable to suit. Only available with xHMI Panel purchase, not sold separately. ....... please click for full text ..... |
 xHMI config cable ASP8 Configuration cable to program the VIPA operator panels with ASP-8 port. Cable connects between the PC and Panel to allow downloading of the project. On each Panel product description it shows the available port type for configuration. ....... please click for full text ..... |
|
xHMI config cable MSP Configuration cable to program the VIPA operator panels with the MSP port. Cable connects between the PC and Panel to allow downloading of the project. On each Panel product description it shows the available port type for configuration. ....... please click for full text ..... |
|
xHMI config software Configuration Software, complete with Programming Cables. Manuals provided electronically on CD format. ....... please click for full text ..... |
|
xHMI mounting screws Mounting screws for many of the VIPA HMI named screens. U shaped hook type screw, they hook under a small slot in the screen side wall and the screw then does up against the rear of the switch board door. ....... please click for full text ..... |
